Final Design:
Testing & Prototyping
Weekly Activity Template
Ankie Chen
Project 3

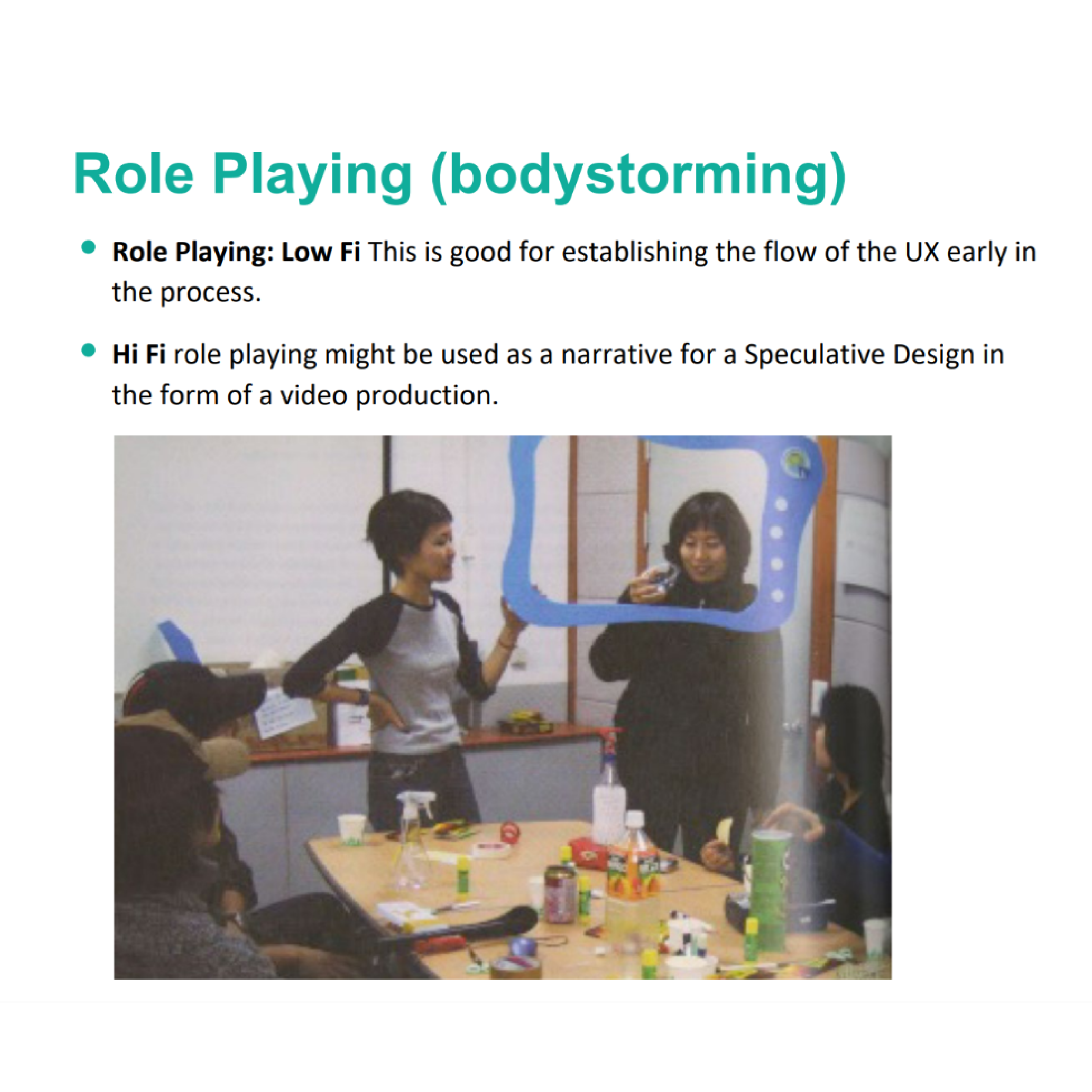

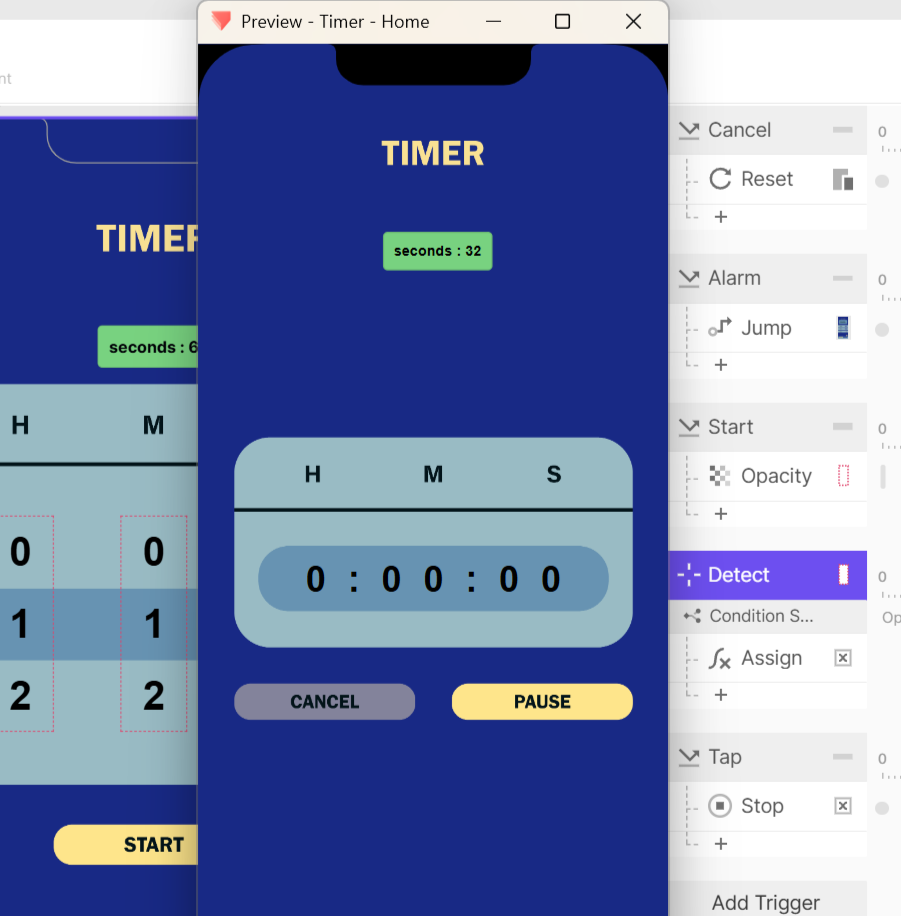

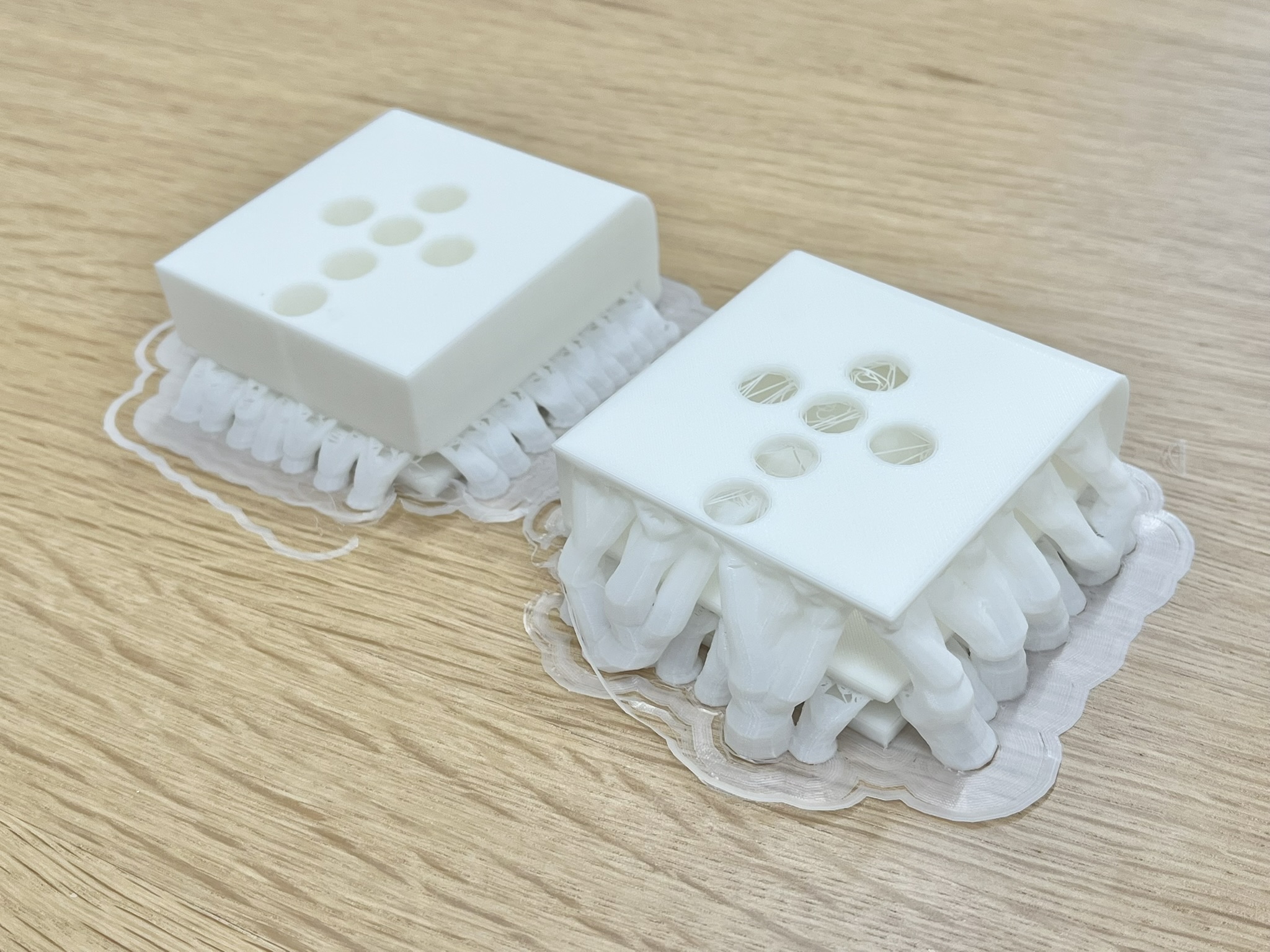

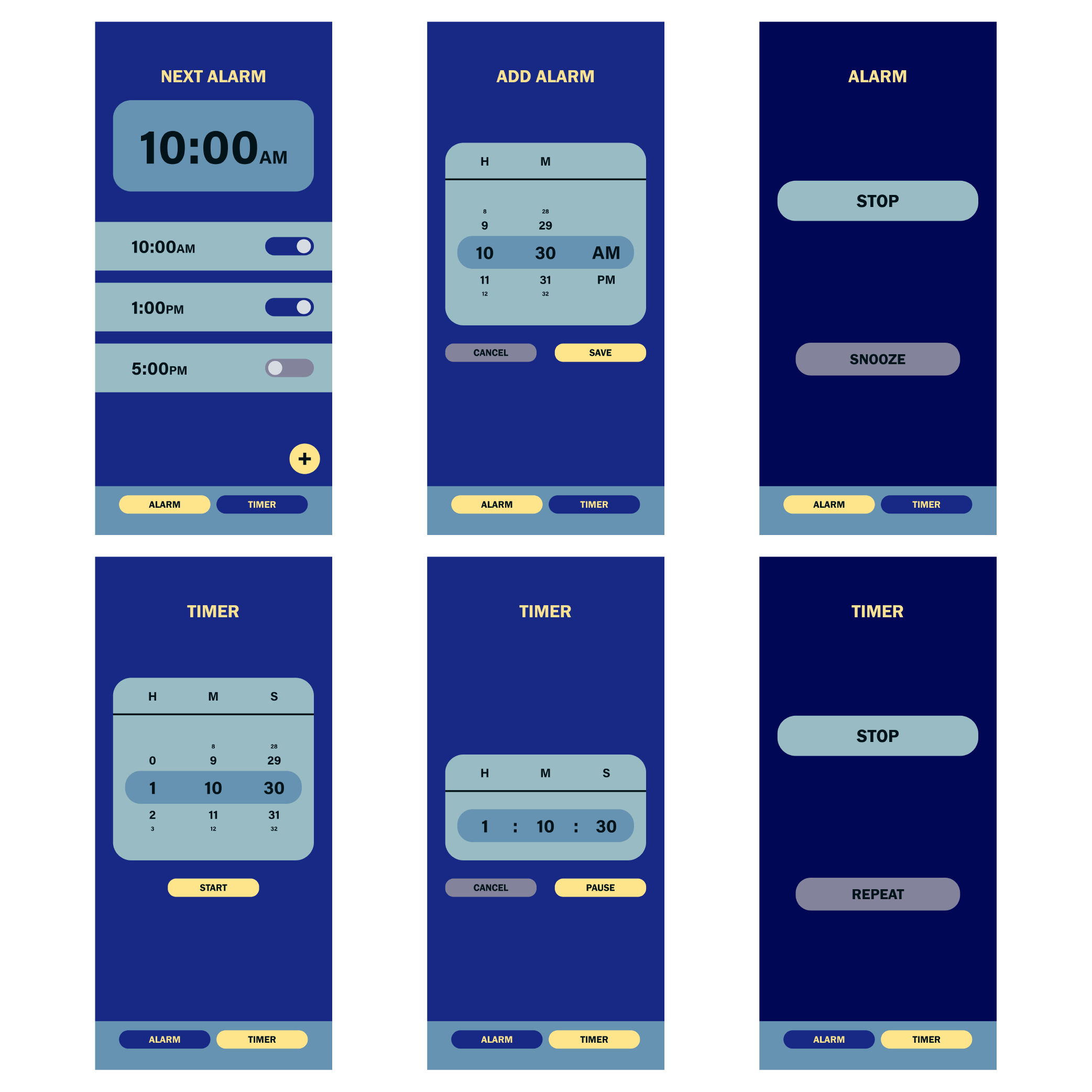

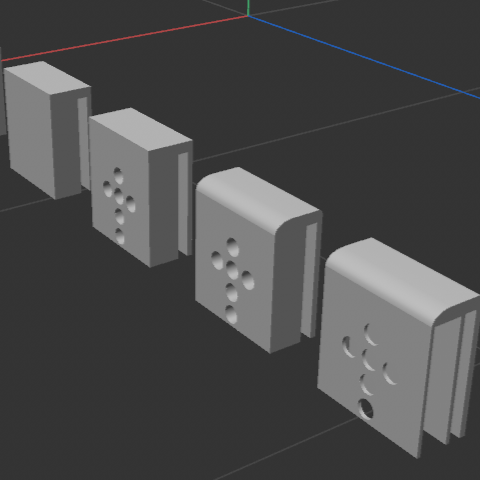

Project 3 builds on the work produced from Project 1 and 2, bringing all components together into a final product. Through weekly activities, I refined the UI screens, created a higher-fidelity case, improved the circuit and conducted deeper user testing through bodystorming. These steps helped me unify the project, strengthening my knowledge and skills across multiple areas of design.

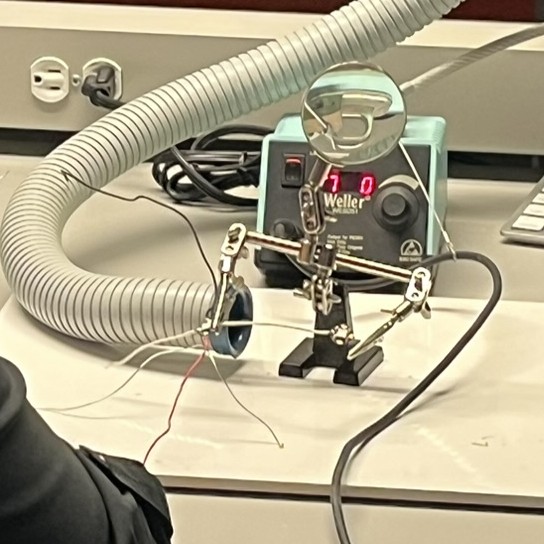

Workshop 1
Workshop 2
Activity 1: My Research
Activity 2: My Research
Additional Research or Workshops

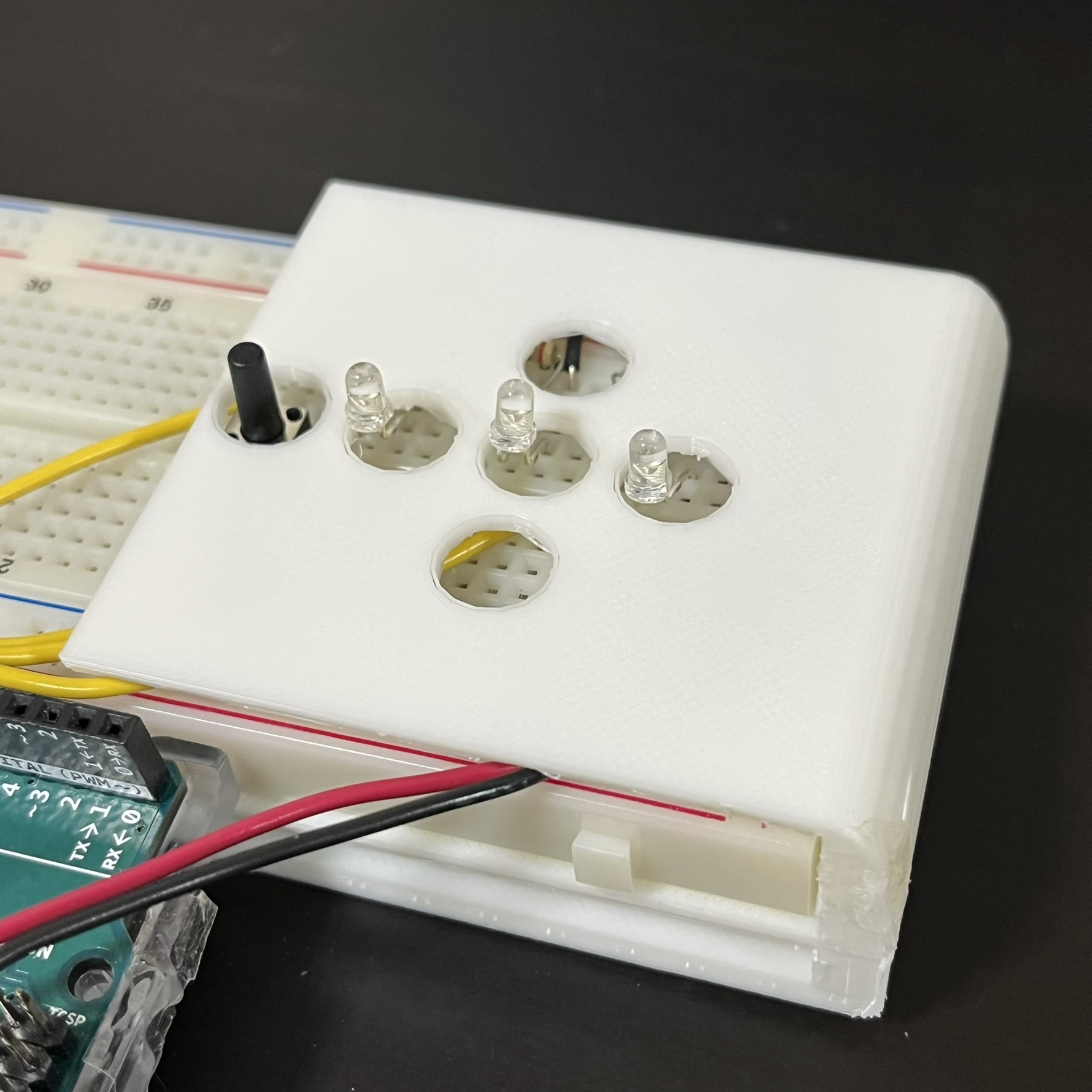

Final Project 3 Prototype

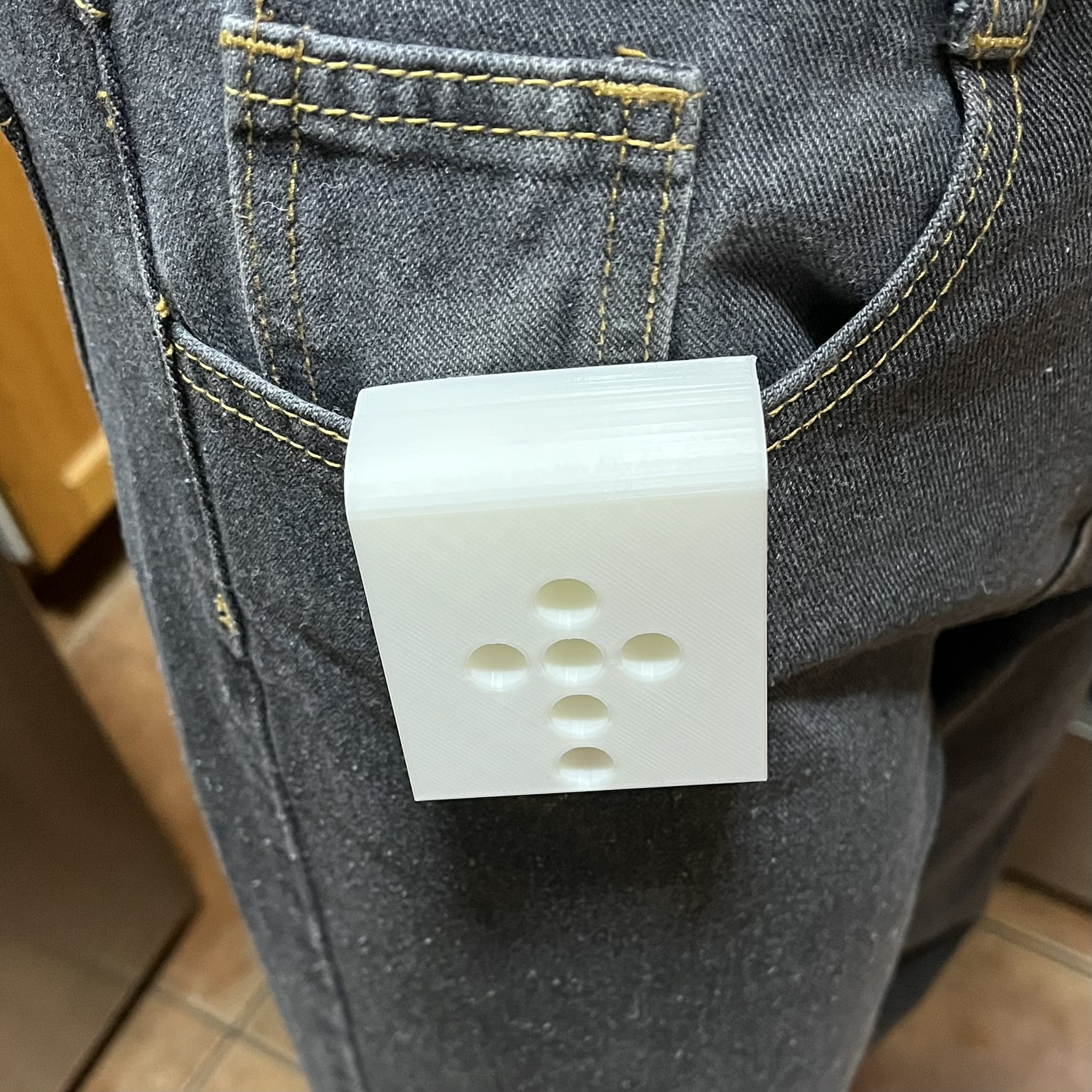

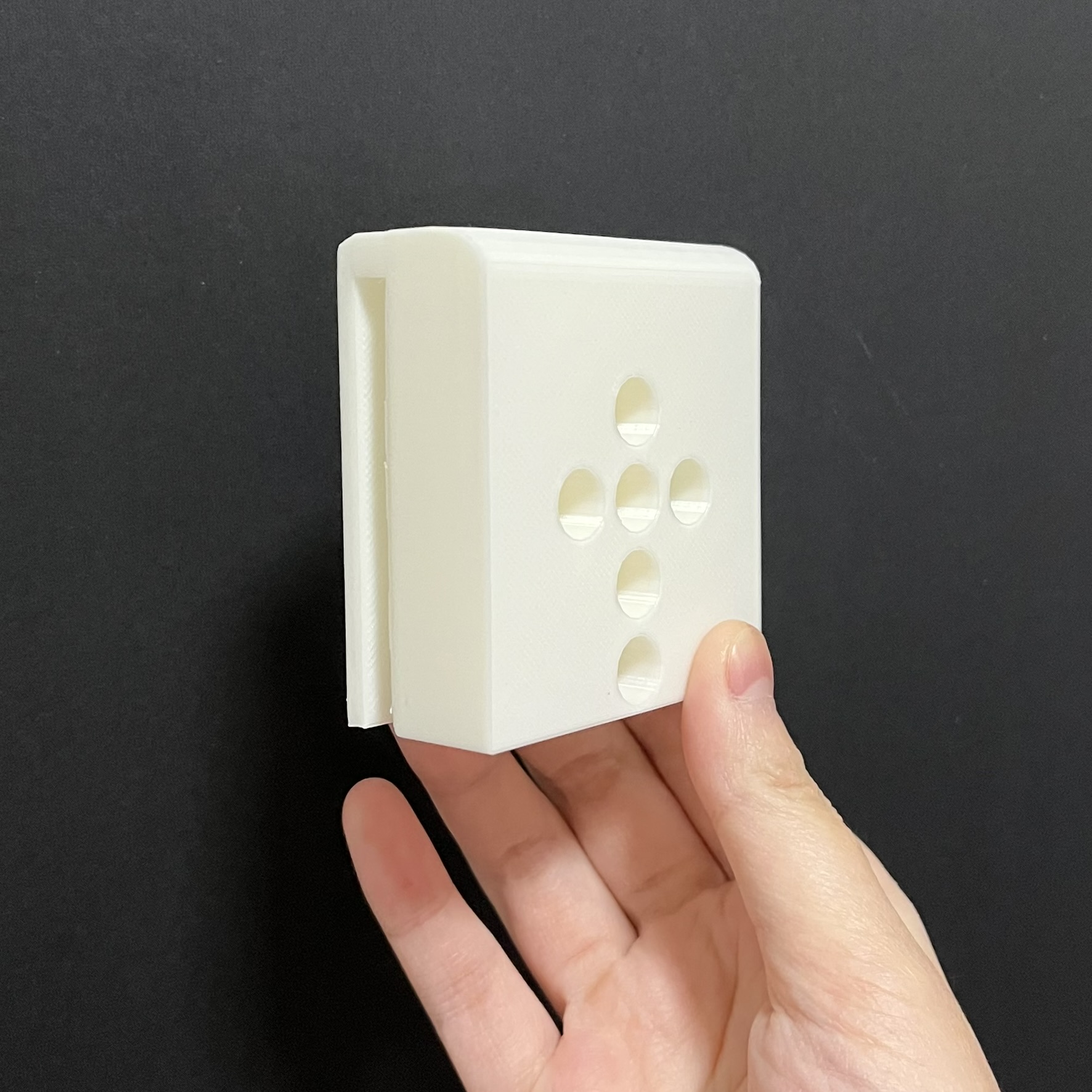

The final deliverable is a simple alarm and timer app paired with a portable, wearable and placeable device that supports everyday life for the Deaf and Hard of Hearing (DHH) community.

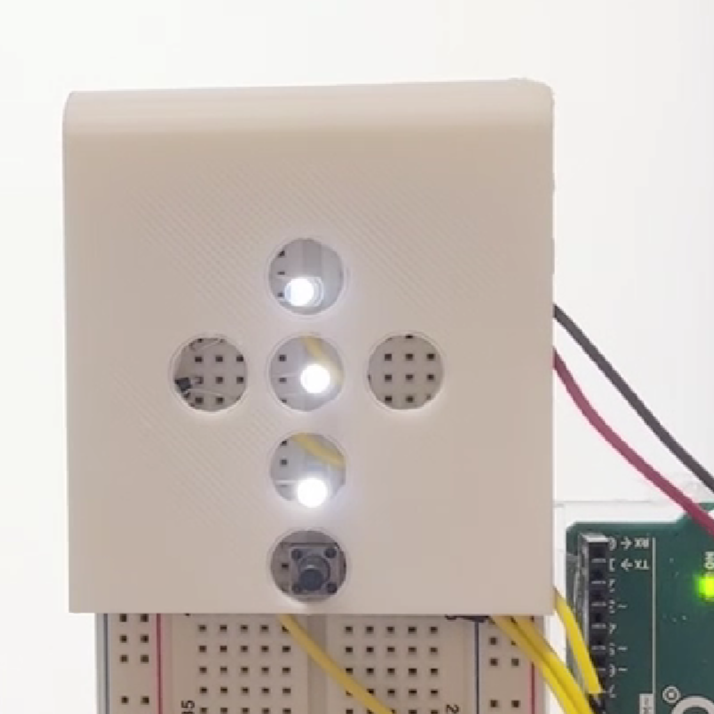

The device is activated through the phone at first, but once a timer or alarm is set, it can function on its own and the phone does not need to be present to turn it off. It alerts the user through LED-based flashes to get their attention.
